The Multi Station Thermoforming Machine is exceptionally versatile，handling a broad spectrum of materials including A-PET, R-PET, C-PET，BOPS, HIPS, PP, PLA, PVC, and various barrier materials.

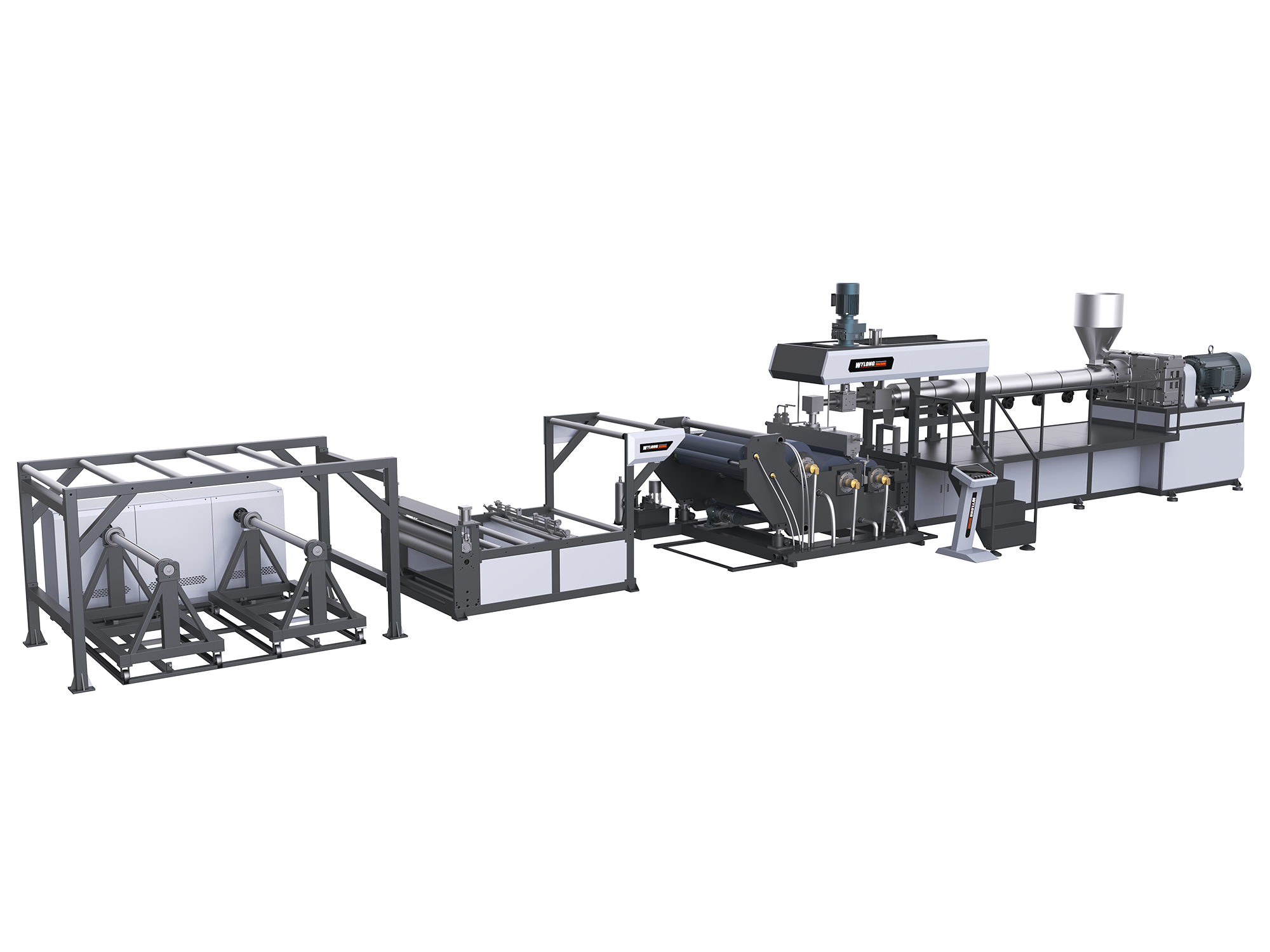

· Model：ZHP-1000/110丨ZHP-1000/120丨ZHP-1000/130
· Die width：1000mm
· Applicable materials：PP,PS,PE
Product FeaturesProduct Characteristics：
· High standardization and precise cutting technology significantly improve the efficiency and quality of food packaging.
· Having flexible production capabilities ensures excellent reliability and precision in industrial applications.
· The 4-pillar press system ensures a balanced distribution of forming and cutting forces.
· Support personalized customization.
· User friendly software for controlling every operation and task.
Scope Of Application：
The Multi Station Thermoforming Machine is exceptionally versatile，handling a broad spectrum of materials including A-PET, R-PET, C-PET，BOPS, HIPS, PP, PLA, PVC, and various barrier materials. This advanced multi-station thermoforming machine efficiently produces a wide range of items such as trays, lids, fruit and vegetable boxes, flower pots, clamshells, nursery trays, and plates. Designed to meet the rigorous demands of multiple industries, it ensures flexibility and high-quality production processes.
Technical Parameters
| Model | ZHP-1000/110 |
| Die width | 1000mm |
| Applicable materials | PP,PS,PE |
| Product width | PP.PE;850mm.PS;750mm |
| Three roll specification | Φ350*1000mm*1φ450*1000mm*2 |
| Product thickness | PP.PE:0.3-2mm PS:0.2-2mm |
| Screw size | Φ110 1:32 |
| Main motor power | 55kw |
| Heating power | 40kw |
| Total power | 100kw |
| Water flow | 50m³/h |
| Line speed | 15-30m/min |
| Yield | 150-200kg/h |
| Overall size | 12*1.8*3m |
| Weight | 7500kg |
2DSketch:
Samples :
| Model | ZHP-1000/120 |
| Die width | 1000mm |
| Applicable materials | PP,PS,PE |
| Product width | PP.PE;850mm.PS;750mm |
| Three roll specification | Φ350*1000mm*1φ450*1000mm*2 |
| Product thickness | PP.PE:0.3-2mm PS:0.2-2mm |
| Screw size | Φ120 1:32 |
| Main motor power | 132kw |
| Heating power | 45kw |
| Total power | 180kw |
| Water flow | 80m³/h |
| Line speed | 15-30m/min |
| Yield | 300-400kg/h |
| Overall size | 13*1.8*3m |
| Weight | 10500kg |
2DSketch:
Samples :
| Model: | ZHP-1000/130 |
| Die width | 1000mm |
| Applicable materials | PP,PS,PE |
| Product width | PP.PE;850mm.PS;750mm |
| Three roll specification | Φ350*1000mm*1φ500*1000mm*2 |
| Product thickness | PP.PE:0.3-2.5mm PS:0.15-2mm |
| Screw size | Φ130 1:35 |
| Main motor power | 160kw |
| Heating power | 50kw |
| Total power | 220kw |
| Water flow | 80m³/h |
| Line speed | 15-30m/min |
| Yield | 400-500kg/h |
| Overall size | 13.5*1.8*3.5m |
| Weight | 12000kg |
2DSketch:
Samples :
FaqQ1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
Overview
Wylong provides different type of thermoforming machines. MF serial is two stations thermoforming machine is forming first, followed by a post trim press to separately trim the finished product to the packing table for packaging, also configure with scrap granulation automatically in-line. MT serial form trim in place one station machine has a small or medium size of forming bed to produce maximum 40 forming/trimming cycle speed. It is suitable for all typical thermo plastic materials, particularly for products that require precise trim tolerances such as deep draw PP containers or cups. MC series is a fully automatic thermoforming machine, designed to specifically meet the demands of production in multi-station operation by steel rule die cutting technology.
