APPLICATION:

The thermoforming Machine Can produce various kind of disposable plastic cup, plastic containers of cooling drinks, sour milk, ice-cream, fast food, or instant noodle, as well as different kinds of merchandise packages of medicine, toy, journal. textile and light industry, etc.

Model	ZHS800/450
Sheet Materials	PP.PS.PET.PE.ABS
Sheet Width	500-800mm
Sheet Thickness	0.3-2.0mm
Max. Forming Area	800×450
Max. Cup Height	200mm
Forming Pressure	0.6-1.0Mpa
Productivity（cycles）	10-35cycles/min
Motor Power	15kw
Heading Power	125kw
Total Weight	6ton
Water Consumption	40-45L/min
Air Consumption	2500-3500L/min
Overall Dimensions	4500x1700x2900mm

Sample：

Model	ZHS850-580
Sheet Materials	PP.PS.PET.PE.ABS
Sheet Width	500-850mm
Sheet Thickness	0.3-2.0mm
Max. Forming Area	850×530
Max. Cup Height	200mm
Forming Pressure	0.6-1.0Mpa
Productivity（cycles）	10-35cycles/min
Motor Power	18kw
Heading Power	180kw
Total Weight	7ton
Water Consumption	40-45L/min
Air Consumption	2500-3500L/min
Overall Dimensions	550018002900mm

Sample：

Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.

Q2: What is the production time?
Reply: Normally we need around 45 days.

Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime
overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.

Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation. Q5: What about the payment terms? Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.

Q6: What is the capacity of the thermoforming machine?
Reply: The accurate capacity depends on the size and material of the products.

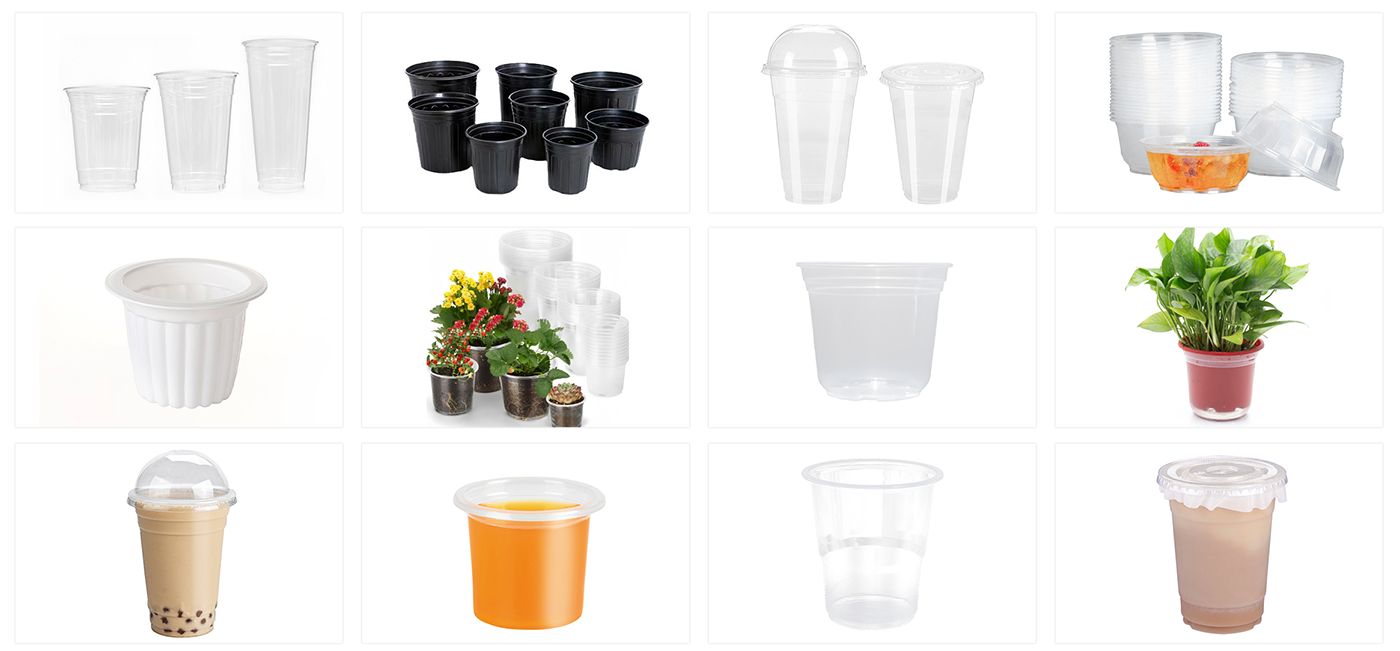

Q7: What kinds of products can the thermoforming machine produce?
Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc.

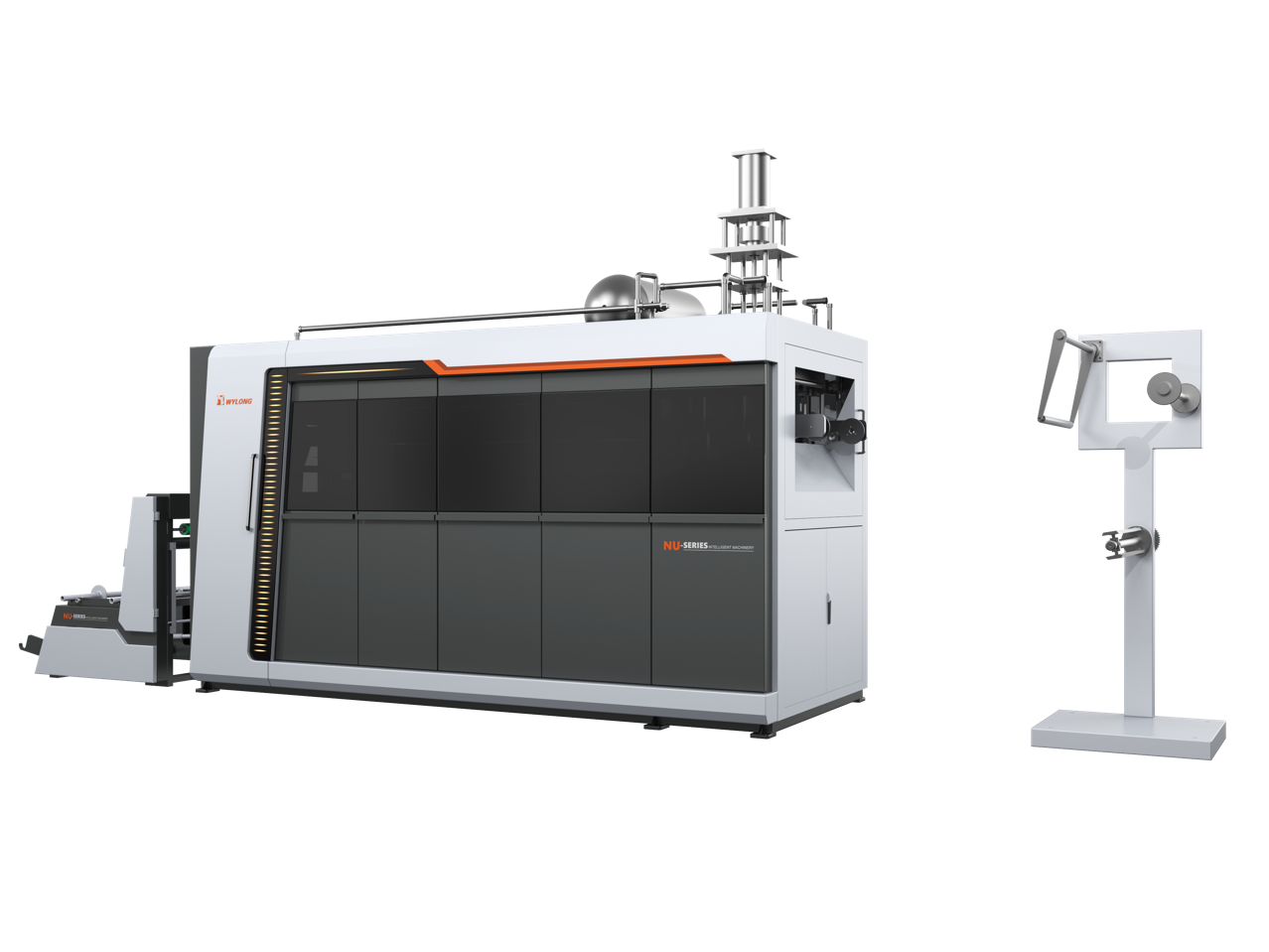

Wylong provides different type of thermoforming machines. MF serial is two stations thermoforming machine is forming first, followed by a post trim press to separately trim the finished product to the packing table for packaging, also configure with scrap granulation automatically in-line. MT serial form trim in place one station machine has a small or medium size of forming bed to produce maximum 40 forming/trimming cycle speed. It is suitable for all typical thermo plastic materials, particularly for products that require precise trim tolerances such as deep draw PP containers or cups. MC series is a fully automatic thermoforming machine, designed to specifically meet the demands of production in multi-station operation by steel rule die cutting technology.
